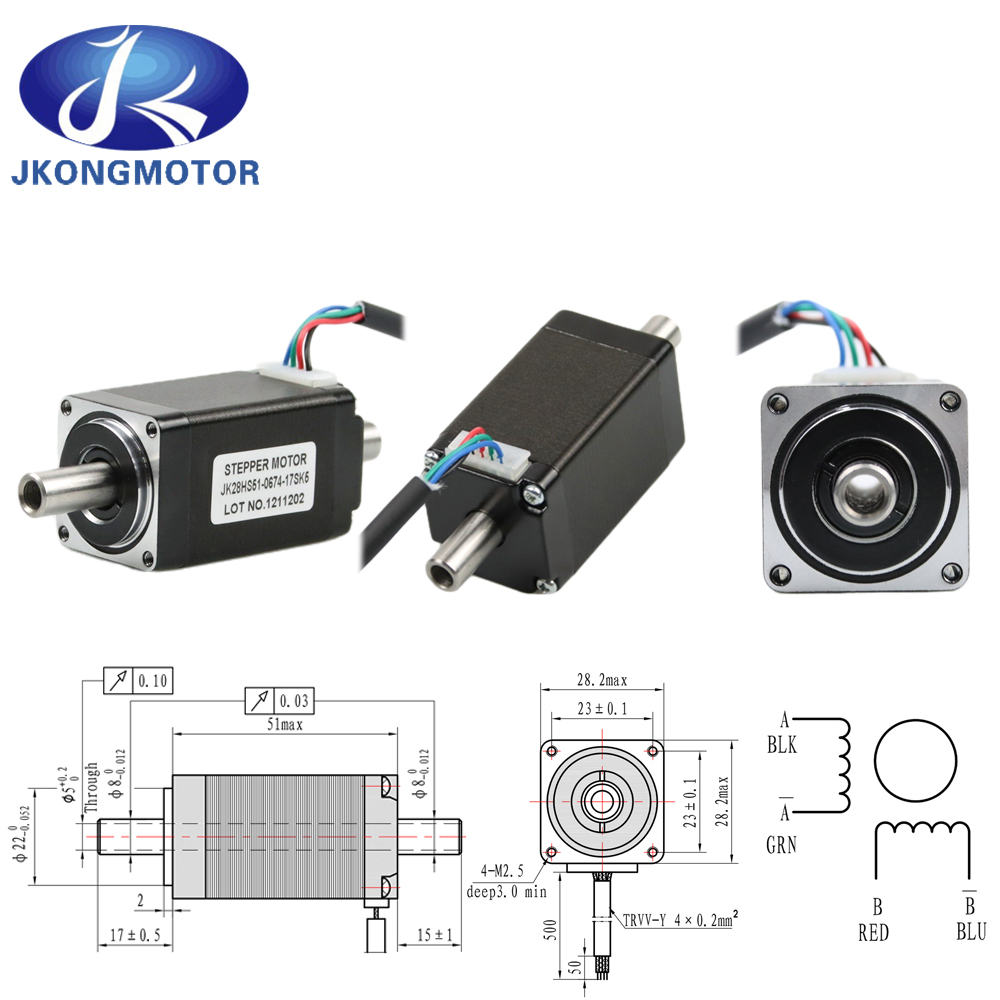

Nema11 Micro Stepping Motor Hollow Double Shaft Hybrid Stepper Motor

  • 1
  • 2
  • 3

Brand Name : Jkongmotor

Model Number : JK28HS51-0674-17SK5

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US$7.6~US$15

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 100000pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Shaft : Double

Leads : 4

current : 0.67A

Holding Torque : 430g.cm - 1200g.cm

Certificate : CE ROHS

Weight : 0.11 - 0.25kg

Motor Length : 51mm

Shaft Diameter : 8mm

Phase Inductance : 5mH

Rated Voltage : 6v

MOQ : 10pcs

Contact Now

Nema11 stepper motor Micro 28x28x51mm Stepping Motor Hollow double Shaft

item value
Warranty 1years
Place of Origin China
Brand Name jkongmotor
Model Number JK28HS51-0671-17SK5
Phase 2
Type Hybrid
Current / Phase 0.67A
Product name nema 11 hollow shaft stepper motor
Name nema 11 stepping motor with hollow shaft
Model JK28HS51-0671-17SK5
Holding Torque 80mN.m
Current / Phase 0.67A
Rated Voltage 6.164V
Phase Resistance 9.2Ω
Phase Inductance 5mH
Motor Length 51mm
Shaft Diameter 8mm


Products parameters:

Brand:Jkongmotor
Product Type: Nema 11 Hollow Shaft Stepper Motor
Model: JK28HS51-0671-17SK5
Holding Torque: 80mN.m
Current / Phase:0.67A
Rated Voltage: 6.164V
Phase Resistance: 9.2Ω
Phase Inductance: 5mH
Motor Length: 51mm
Shaft Diameter: 8mm
Number of leads: 4-leads
Weight: 0.18kg
Noted: This motor can be customized

Genaral Specification:

Item Specifications
Step Angle 1.8°
Step Angle Accuracy ±5%(full step,no load)
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 28N (20mm from the flange)
Max. axial force 10N


Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Rotor Inertia

Motor

Weight
( °) (L)mm A Ω mH g.cm No. g.cm Kg
JK28HS32-0674 1.8 32 0.67 5.6 3.4 600 4 9 0.11
JK28HS32-0956 1.8 32 0.95 2.8 0.8 430 6 9 0.11
JK28HS45-0956 1.8 45 0.95 3.4 1.2 750 6 12 0.14
JK28HS45-0674 1.8 45 0.67 6.8 4.9 950 4 12 0.14
JK28HS51-0956 1.8 51 0.95 4.6 1.8 900 6 18 0.2
JK28HS51-0674 1.8 51 0.67 9.2 7.2 1200 4 18 0.2


Nema11 Micro Stepping Motor Hollow Double Shaft Hybrid Stepper Motor
Nema11 Micro Stepping Motor Hollow Double Shaft Hybrid Stepper Motor
Nema11 Micro Stepping Motor Hollow Double Shaft Hybrid Stepper Motor

Nema11 Micro Stepping Motor Hollow Double Shaft Hybrid Stepper Motor

Nema11 Micro Stepping Motor Hollow Double Shaft Hybrid Stepper Motor

Nema11 Micro Stepping Motor Hollow Double Shaft Hybrid Stepper Motor

Nema11 Micro Stepping Motor Hollow Double Shaft Hybrid Stepper Motor


Stepper Motor Applications

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.



Nema11 Micro Stepping Motor Hollow Double Shaft Hybrid Stepper MotorNema11 Micro Stepping Motor Hollow Double Shaft Hybrid Stepper Motor
